38mm Wire Block — Becket

The Symbol : 313

Cat nr. 313

2 515,52 Kč

opak Add to wishlist

The loyalty program is only available for logged in customers.

Reviews

lack of ratings (Add )

Delivery time to

30 days

Shipping price

0,00 Kč

Warehouse pickup

0,00 Kč

The bar code	313
EAN

Zamówienie telefoniczne: +48-517-260-626

Description
Safety Information
Reviews & ratings (0)

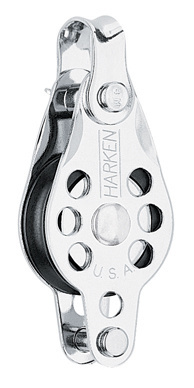

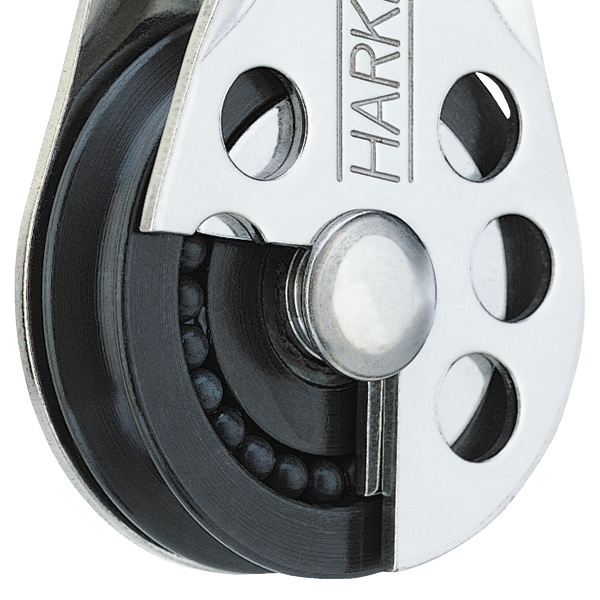

Lightweight, low-friction wire blocks carry wire halyards and high-strength control lines on boats of all sizes.

Sheave Ø (mm) 38 mm

Sheave Ø (in) 1 1/2 in

Maximum wire Ø (in) 1/8 in

Maximum wire Ø (mm) 3 mm

Maximum working load (kg) 680 kg

Maximum working load (lb) 1500 lb

Safety Information

Safety Instructions for Sailing Blocks
1. Purpose of the Blocks
Sailing blocks are designed exclusively for use in water sports and are intended for guiding lines in rigging systems on floating vessels.
2. Usage Restrictions
• Prohibited Use: The block is not intended for human safety applications or for any use related to personal safety, such as climbing, rescue operations, or work at heights.
• The block may only be used under the conditions specified in the technical documentation.
3.Technical Specifications
Before using the block, read the product data sheet, which contains the following details:
• Maximum Working Load (SWL).
• Maximum rope diameter the block can work with.
• Materials from which the block is made.
Failure to adhere to the specifications in the product data sheet may result in damage to the block and dangerous situations.
4.Inspection and Maintenance
• Before each use, inspect the block, especially to ensure that:
o The sheaves rotate smoothly.
o There are no cracks, corrosion, or other damage.
o Any snap hooks, if present, are functioning correctly.
• Regularly clean the block of dirt, salt, and sand.
• Store the block in a dry and secure place, away from direct sunlight and chemicals.
5.Safe Usage
• Do not exceed the maximum working load (SWL).
• Use the block exclusively in sailing systems according to its intended purpose.
• Ensure that the rope used with the block is of the correct diameter and in good condition.
6.User Responsibility
The user is required to adhere to this instruction and the technical parameters provided in the product data sheet. The manufacturer is not liable for damages resulting from improper use of the block.
________________________________________
If you have any doubts or need further information, please contact the manufacturer or distributor.
