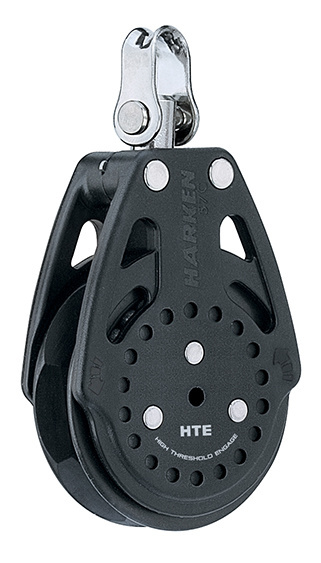

Harken 57mm Ratchamatic® HTE Block — Swivel
Cat. nr 2625.HTE
| Reviews | |
| Delivery time to | 30 days |
| Shipping price | 0 |
| The bar code | |
| EAN |
Zamówienie telefoniczne: +48-517-260-626
The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless. The spring on the HTE (high-threshold engage) version of the 57 mm Carbo Ratchamatic blocks was made stiffer to delay the point where the ratchet engages, allowing the block to run free more of the time. The ratchet function engages at higher loads to allow the old kite sheet to run free for crisper gybes. Standard grip: medium/light air; 10:1 holding power.
Sheave Ø (mm) 57 mm
Sheave Ø (in) 2 1/4 in
Maximum line Ø (mm) 10 mm
Maximum line Ø (in) 3/8 in
Maximum working load (kg) 227 kg
Maximum working load (lb) 500 lb
Safety Information
Safety Instructions for Sailing Blocks
1. Purpose of the Blocks
Sailing blocks are designed exclusively for use in water sports and are intended for guiding lines in rigging systems on floating vessels.
2. Usage Restrictions
• Prohibited Use: The block is not intended for human safety applications or for any use related to personal safety, such as climbing, rescue operations, or work at heights.
• The block may only be used under the conditions specified in the technical documentation.
3.Technical Specifications
Before using the block, read the product data sheet, which contains the following details:
• Maximum Working Load (SWL).
• Maximum rope diameter the block can work with.
• Materials from which the block is made.
Failure to adhere to the specifications in the product data sheet may result in damage to the block and dangerous situations.
4.Inspection and Maintenance
• Before each use, inspect the block, especially to ensure that:
o The sheaves rotate smoothly.
o There are no cracks, corrosion, or other damage.
o Any snap hooks, if present, are functioning correctly.
• Regularly clean the block of dirt, salt, and sand.
• Store the block in a dry and secure place, away from direct sunlight and chemicals.
5.Safe Usage
• Do not exceed the maximum working load (SWL).
• Use the block exclusively in sailing systems according to its intended purpose.
• Ensure that the rope used with the block is of the correct diameter and in good condition.
6.User Responsibility
The user is required to adhere to this instruction and the technical parameters provided in the product data sheet. The manufacturer is not liable for damages resulting from improper use of the block.
________________________________________
If you have any doubts or need further information, please contact the manufacturer or distributor.
