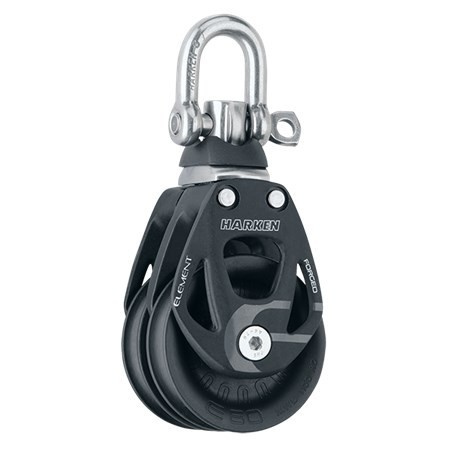

• Harken 60mm Aluminum Element Double Block — Swivel

The Symbol : 97653284161

Part No. 6269

553.01
opak Add to wishlist
The loyalty program is only available for logged in customers.
Delivery time to 20 days
Shipping price 60
Odbiór osobisty 0
UE shipping 60
Oversize 60

Zamówienie telefoniczne: +48-517-260-626

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

Sheave Ø (mm) 60 mm

Sheave Ø (in) 2 3/8 in

Length (mm) 146 mm

Length (in) 5 3/4 in

Weight (g) 355 g

Weight (oz) 12.4 oz

Shackle pin Ø (mm) 8 mm

Shackle pin Ø (in) 5/16 in

Maximum line Ø (mm) 14 mm

Maximum line Ø (in) 9/16 in

Maximum working load (kg) 1375 kg

Maximum working load (lb) 3032 lb

Breaking load (kg) 2750 kg

Breaking load (lb) 6064 lb
