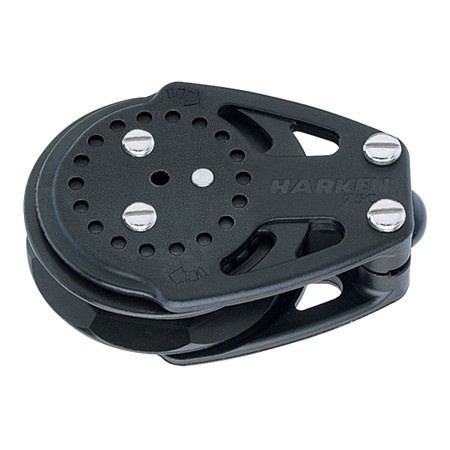

• Harken Carbo 75mm Ratchmatic Block, horizontal

The Symbol : 2682

Part No. 2682

opak Add to wishlist
The loyalty program is only available for logged in customers.
Delivery time to 30 days
Shipping price The Lack Of

Zamówienie telefoniczne: +48-517-260-626

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.


PDF Document


Sheave Ø (mm) 75 mm
Sheave Ø (in) 2 15/16 in
Length (mm) 103 mm
Length (in) 4 1/16 in
Weight (g) 184 g
Weight (oz) 6.5 oz
Maximum line Ø (mm) 12 mm
Maximum line Ø (in) 7/16 in
Fasteners (mm) M5 mm
Maximum working load (kg) 341 kg
Maximum working load (lb) 750 lb
Breaking load (kg) 1361 kg
Breaking load (lb) 3000 lb
Holding power 15:1
Footnote Includes fasteners and mounting pad.
