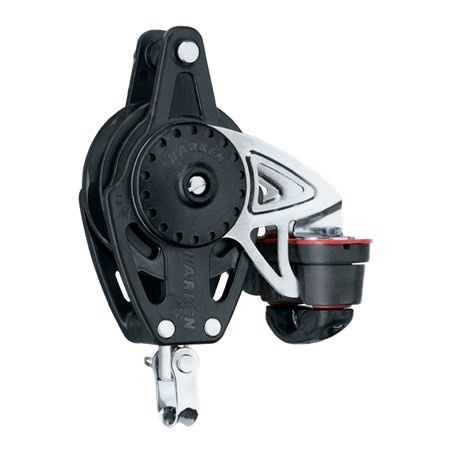

• Harken Carbo 75mm Ratchmatic Block with shackle

The Symbol : 2684

Part No. 2684

1739.90
opak Add to wishlist
The loyalty program is only available for logged in customers.
Reviews
Delivery time to 30 days
Shipping price 0
Pick up in store (Gdynia) 0

Zamówienie telefoniczne: +48-517-260-626

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.



PDF Document



Sheave Ø (mm) 75 mm
Sheave Ø (in) 2 15/16 in
Length (mm) 165 mm
Length (in) 6 1/2 in
Weight (g) 440 g
Weight (oz) 15.5 oz
Shackle pin Ø (mm) 6 mm
Shackle pin Ø (in) 1/4 in
Maximum line Ø (mm) 12 mm
Maximum line Ø (in) 7/16 in
Maximum working load (kg) 272 kg
Maximum working load (lb) 600 lb
Breaking load (kg) 680 kg
Breaking load (lb) 1500 lb
Holding power 15:1
Footnote Maximum working loads and breaking loads for blocks based on cam strengths.
