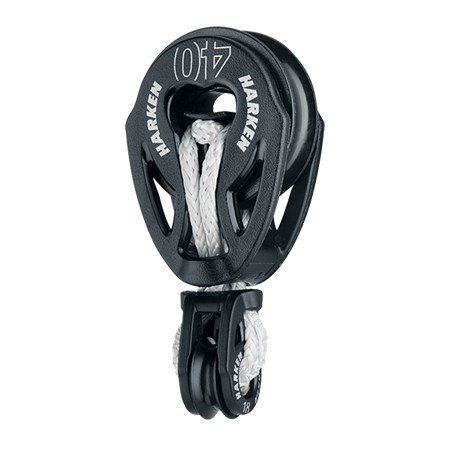

Harken T2™ Soft-Attach Traveler Block 18/40mm

Harken T2™ Soft-Attach Traveler Block 18/40mm

The Symbol : 97653278382

Nr kat. 2162

2 174,61 Kč

opak Add to wishlist

The loyalty program is only available for logged in customers.

Reviews

lack of ratings (Add )

Delivery time to

30 days

Shipping price

0,00 Kč

Warehouse pickup

0,00 Kč

The bar code	097653278382
EAN	097653278382

Zamówienie telefoniczne: +48-517-260-626

Description
Safety Information
Reviews & ratings (0)

The 18 mm block features stainless steel ball bearings and an integrated stainless inner race and rivet for optimal strength-to-weight. The 40 mm blocks feature composite sheaves that spin freely on Delrin® ball bearings with curved bearing races. They have no metal shackles or rivets, making them the lightest soft-attach blocks Harken has ever designed. Delrin is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.

Sheave Ø (mm) 40 mm

Sheave Ø (in) 1 9/16 in

Maximum line Ø (mm) 5 mm

Maximum line Ø (in) 3/16 in

Maximum working load (kg) 125 kg

Maximum working load (lb) 275 lb

Safety Information

Safety Instructions for Sailing Blocks
1. Purpose of the Blocks
Sailing blocks are designed exclusively for use in water sports and are intended for guiding lines in rigging systems on floating vessels.
2. Usage Restrictions
• Prohibited Use: The block is not intended for human safety applications or for any use related to personal safety, such as climbing, rescue operations, or work at heights.
• The block may only be used under the conditions specified in the technical documentation.
3.Technical Specifications
Before using the block, read the product data sheet, which contains the following details:
• Maximum Working Load (SWL).
• Maximum rope diameter the block can work with.
• Materials from which the block is made.
Failure to adhere to the specifications in the product data sheet may result in damage to the block and dangerous situations.
4.Inspection and Maintenance
• Before each use, inspect the block, especially to ensure that:
o The sheaves rotate smoothly.
o There are no cracks, corrosion, or other damage.
o Any snap hooks, if present, are functioning correctly.
• Regularly clean the block of dirt, salt, and sand.
• Store the block in a dry and secure place, away from direct sunlight and chemicals.
5.Safe Usage
• Do not exceed the maximum working load (SWL).
• Use the block exclusively in sailing systems according to its intended purpose.
• Ensure that the rope used with the block is of the correct diameter and in good condition.
6.User Responsibility
The user is required to adhere to this instruction and the technical parameters provided in the product data sheet. The manufacturer is not liable for damages resulting from improper use of the block.
________________________________________
If you have any doubts or need further information, please contact the manufacturer or distributor.
