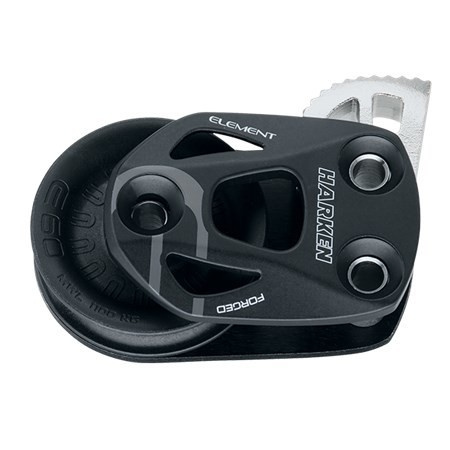

• Harken Element Block 60mm lying block left

The Symbol : 6276

Part No. 6276

362.85
opak Add to wishlist
The loyalty program is only available for logged in customers.
Reviews
Delivery time to 30 days
Shipping price 0
Pick Up point Gdynia 0

Zamówienie telefoniczne: +48-517-260-626

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. Bearing sheave of tough composite resists corrosion for a long service life.

PDF Document

Sheave Ø (mm) 60 mm
Sheave Ø (in) 2 3/8 in
Length (mm) 102 mm
Length (in) 4 in
Height (mm) 30 mm
Height (in) 1 3/16 in
Weight (g) 210 g
Weight (oz) 7.4 oz
Maximum line Ø (mm) 14 mm
Maximum line Ø (in) 9/16 in
Maximum working load (kg) 1100 kg
Maximum working load (lb) 2425 lb
Breaking load (kg) 2200 kg
Breaking load (lb) 4850 lb
Fasteners (mm) 8 mm

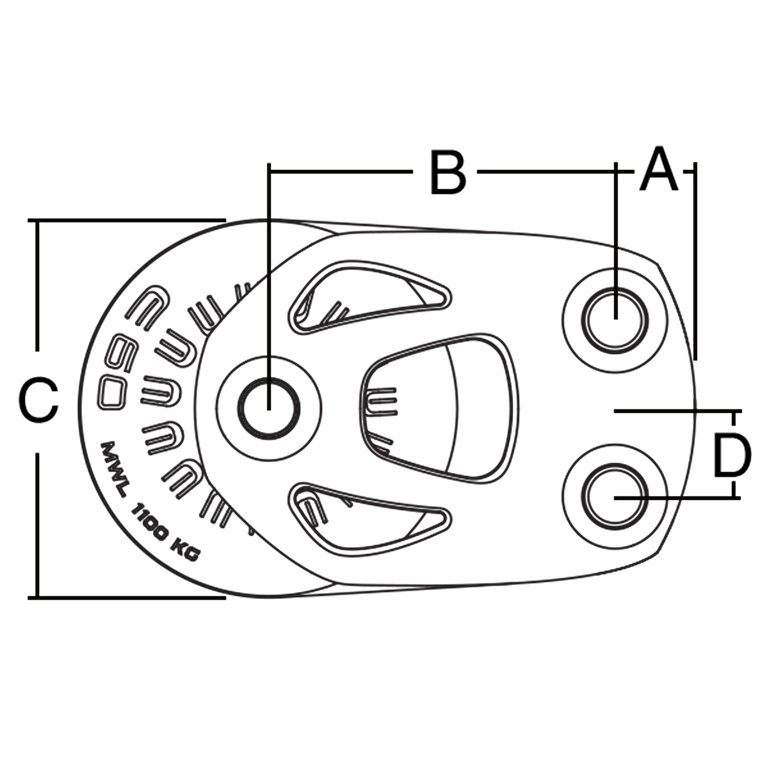

A (mm) 12.5 mm
A (in) 1/2 in
B (mm) 54.5 mm
B (in) 2 5/32 in
C (mm) 60 mm
C (in) 2 3/8 in
D (mm) 14 mm
D (in) 9/16 in
