• Harken Blok carbo 75mm Ratchmatic knaga zaczep

The Symbol : 2684

Part No. 2684

No goods
The loyalty program is only available for logged in customers.
Enter your email
Shipping within 24 hours
Shipping price 0
Personal collection 0

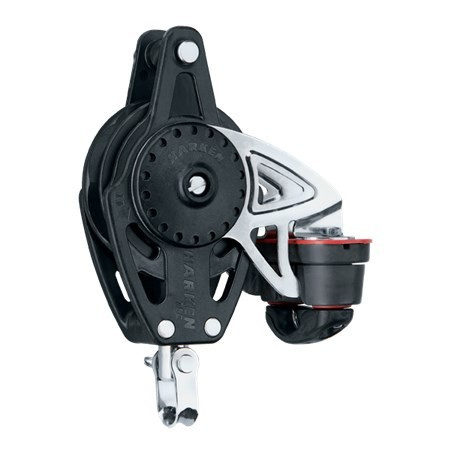

The Carbo Ratchamatic® is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless.


PDF Document


Sheave Ø (mm) 75 mm
Sheave Ø (in) 2 15/16 in
Length (mm) 165 mm
Length (in) 6 1/2 in
Weight (g) 440 g
Weight (oz) 15.5 oz
Shackle pin Ø (mm) 6 mm
Shackle pin Ø (in) 1/4 in
Maximum line Ø (mm) 12 mm
Maximum line Ø (in) 7/16 in
Maximum working load (kg) 272 kg
Maximum working load (lb) 600 lb
Breaking load (kg) 680 kg
Breaking load (lb) 1500 lb
Holding power 15:1
Footnote Maximum working loads and breaking loads for blocks based on cam strengths.
